- Commodity name: 5XT
The stylish design and excellent sound quality make it suitable for smaller settings such as conference rooms, classrooms, and commercial spaces. Its powerful directionality allows for precise sound projection, ensuring a clear and recognizable audio experience for the audience.
Electroacoustic specs
2-way active coaxial enclosure
amplified by LA4X / LA8 / LA12XUsable bandwidth (-10 dB) 55 Hz – 20 kHz ([X15])
Maximum SPL1 138 dB ([X15])
Nominal directivity (-6 dB) Vertical: 60° symmetric
horizontal: 40° symmetric
Monitor angle Without risers: 35°
with risers: 55°
Transducers LF: 1 × 15″ cone driver
HF: 1 × 3″ diaphragm compression driver, neodymium
Acoustical load Load bass-reflex, L-Vents, ellipsoidal
waveguideNominal impedance LF: 8 Ω
HF: 8 Ω
1 Peak level measured at 1 m under free field
conditions using pink noise with crest factor 4 (preset specified in brackets).Physical specs

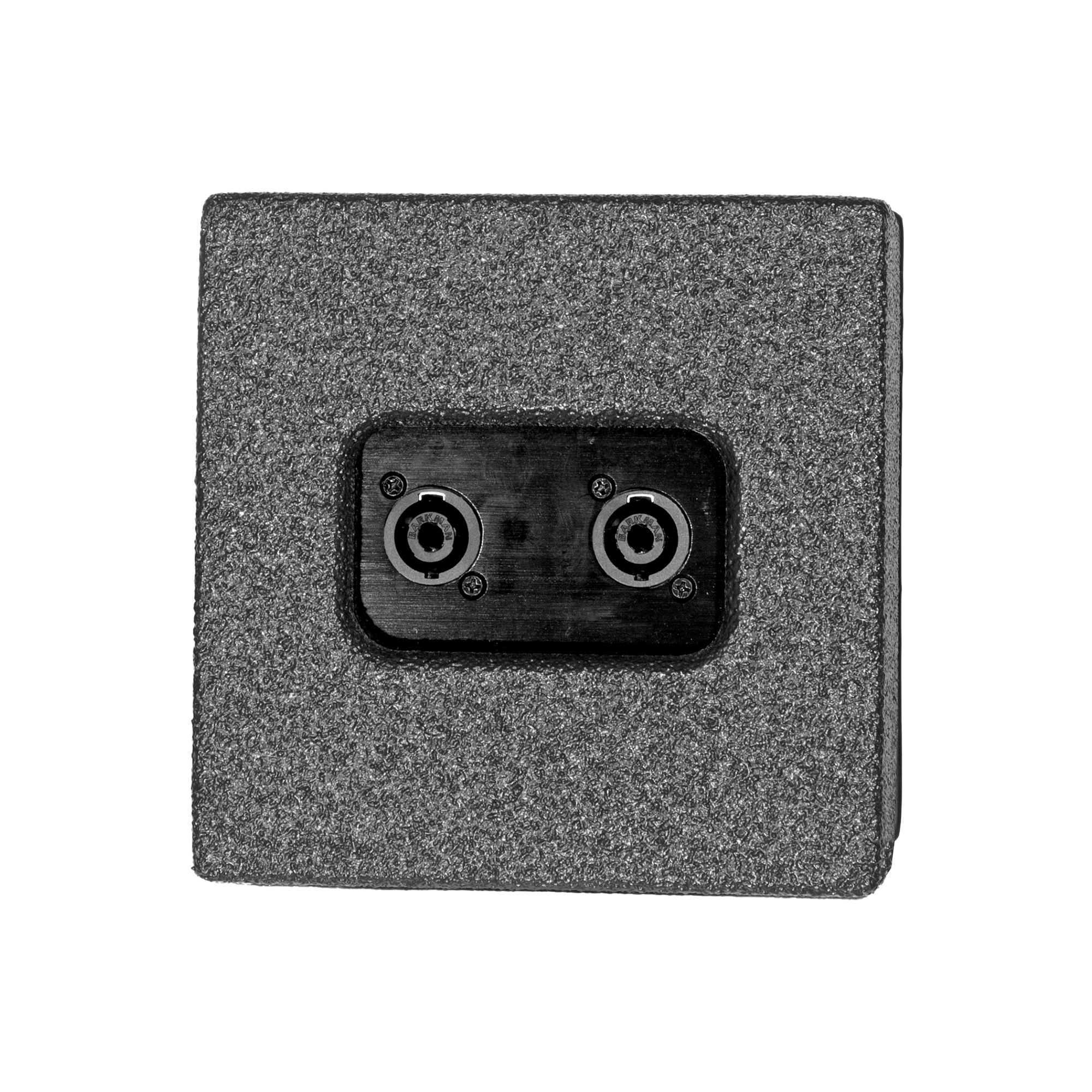

Connectors IN: 1 × 4-point speakON
LINK: 1 × 4-point speakON
Rigging and handling 2 handles
1 DIN580-compatible M8 threaded insert
4 M10 threaded inserts
2 × 35 mm pole sockets
Weight (net) 21 kg / 46.3 lb
Cabinet Premium grade Baltic beech and birch plywood
Front Steel with anti-corrosion coating
acoustically neutral 3D fabric
Finish Dark grey brown Pantone 426 C
custom RAL code on special order
IP IP43
Electroacoustic specs
2-way active coaxial enclosure
amplified by LA4X / LA8 / LA12X
Usable bandwidth (-10 dB) 55 Hz – 20 kHz ([X15])
Maximum SPL1 138 dB ([X15])
Nominal directivity (-6 dB) Vertical: 60° symmetric
horizontal: 40° symmetric
Monitor angle Without risers: 35°
with risers: 55°
Transducers LF: 1 × 15″ cone driver
HF: 1 × 3″ diaphragm compression driver, neodymium
Acoustical load Load bass-reflex, L-Vents, ellipsoidal
waveguide
Nominal impedance LF: 8 Ω
HF: 8 Ω
1 Peak level measured at 1 m under free field
conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
Connectors IN: 1 × 4-point speakON
LINK: 1 × 4-point speakON
Rigging and handling 2 handles
1 DIN580-compatible M8 threaded insert
4 M10 threaded inserts
2 × 35 mm pole sockets
Weight (net) 21 kg / 46.3 lb
Cabinet Premium grade Baltic beech and birch plywood
Front Steel with anti-corrosion coating
acoustically neutral 3D fabric
Finish Dark grey brown Pantone 426 C
custom RAL code on special order
IP IP43
